Thermal Cycling
The PQP’s Thermal Cycling (TC) test extends the IEC/UL certification test from 200 to 600 cycles, more accurately simulating a PV module’s lifespan of temperature fluctuations. TC’s extreme temperature swings stress module components, degrading bonds within the module and junction box that could substantially reduce performance. This test is crucial for environments with significant day-to-night temperature differences.
Key
Takeaways
84% of BOMs tested degraded by < 2%.
This same value was reported in last year’s Scorecard, and while the median degradation following TC was also aligned with last year (0.8% for BOMs produced in 2023 versus 0.7% for BOMs produced in 2022), the number of outliers and failures has increased See the Power Degradation graph below for more.
Test Result Spotlight
Kiwa PVEL continues to uncover cases of modules that perform exceedingly well for the IEC 61215 standard’s 200 thermal cycle test duration, but significant issues are uncovered during the PQP’s extended test. In this example, the module had negligible power loss after TC200, but the degradation reached over 5% following TC600. The EL images resemble some other TOPCon BOMs tested in the past year, with increasing evidence of high resistance areas. This is possibly due to the change to aluminum and silver paste, rather than just silver metallization.

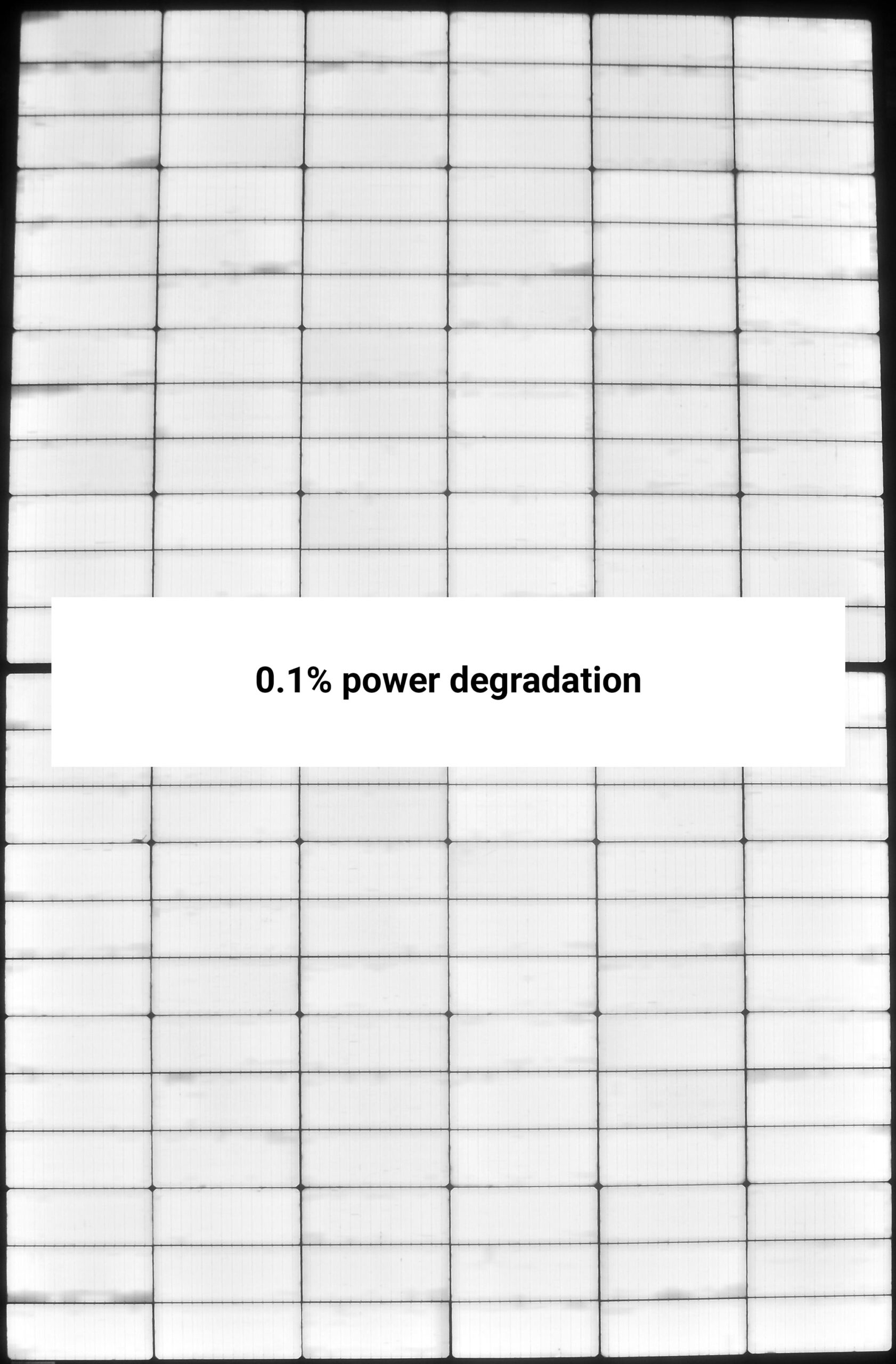

TC200
The module performs exceptionally well after TC200 with almost no power degradation.

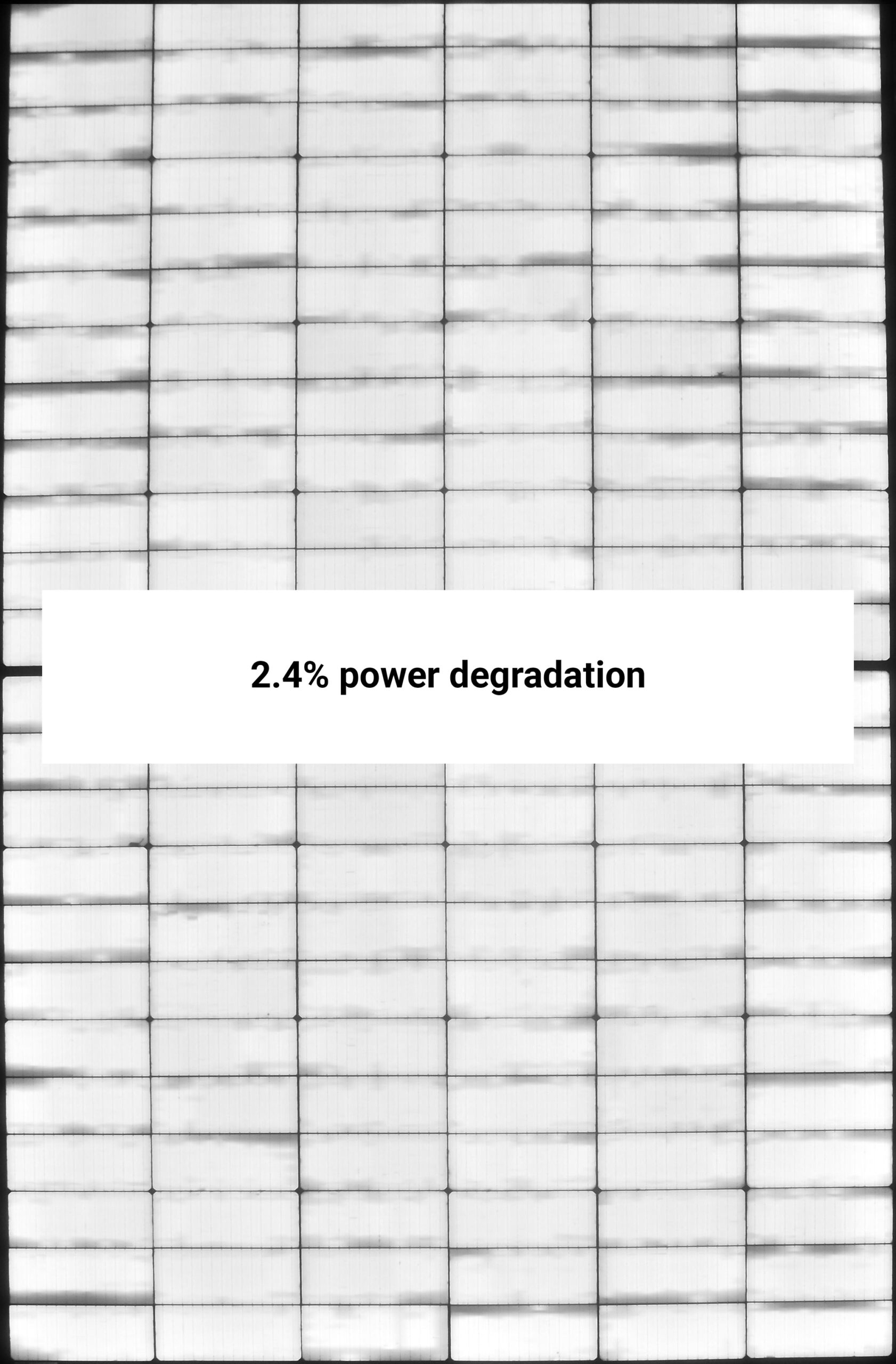

TC400
After TC400, the power loss has increased to 2.4% and higher resistance (darker) areas can be seen.

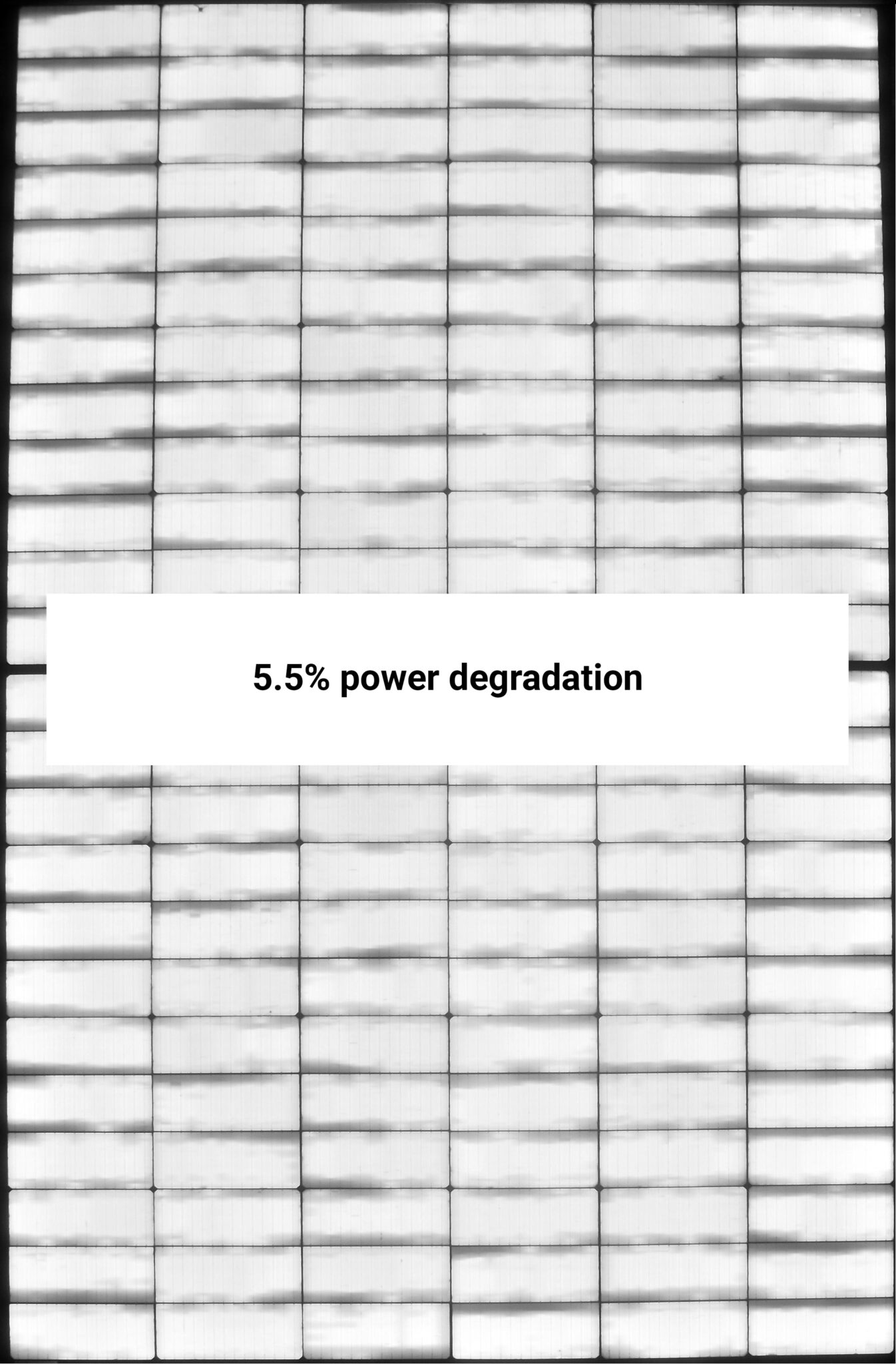

TC600
After TC600, the power loss has exceeded 5% and the higher resistance areas are more pronounced.

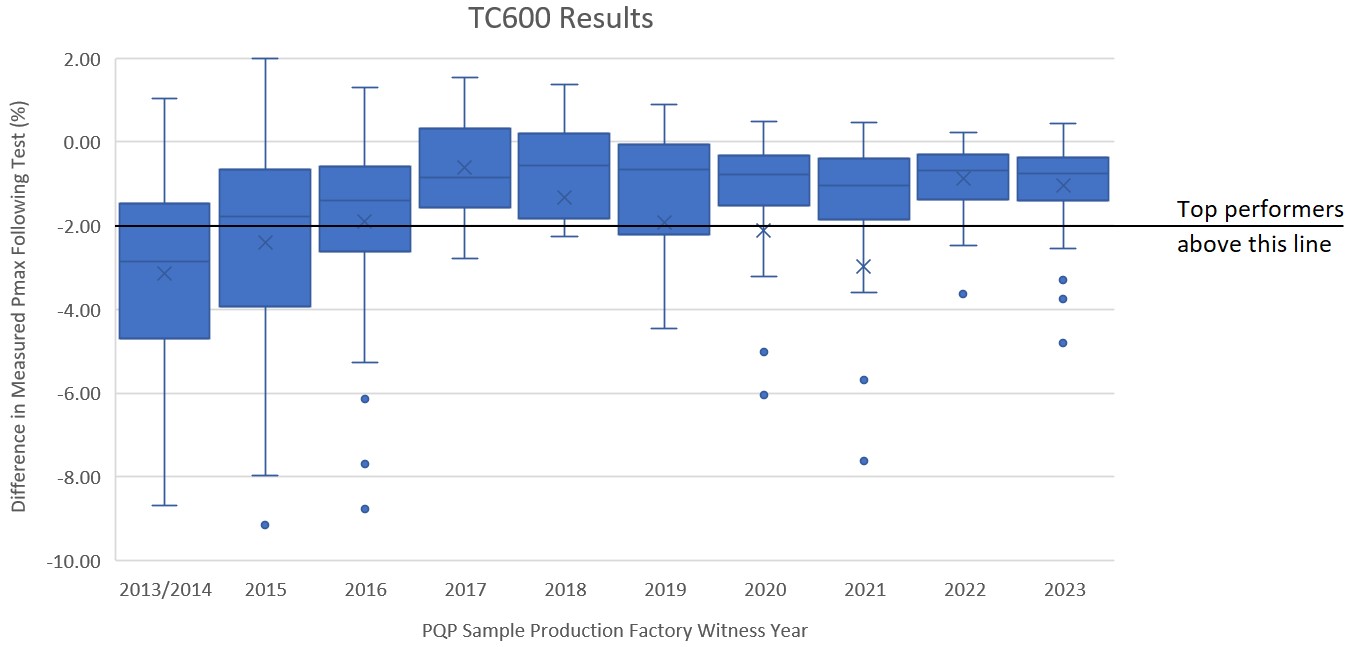

Power Degradation of TC BOMs
Outliers with >10% degradation are not shown. In some cases, these cause a significant reduction in the mean.
View Box Plot Interpretation GuideA case study on why TC is important, what PV module materials are assessed, and the test procedure can be found here on kiwa.com/pvel .
See Thermal Cycling Top Performers
Click here to see the 150 model types listed as TC Top Performers.
